Табл., Начало
| # | Номер по каталогу / Parts no. | Описание / Description | Изображение / Pictures |
|---|

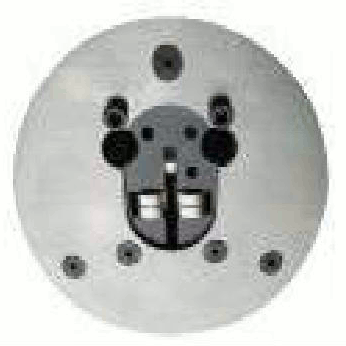

| Cutter Component ( Набор ) |
| 01. | CH08-02-24 | Push Case |  |
| 02. | CH08-02-22 | Work Piece Presser |
| 03. | CH08-02-29 | Metal |
| 04. | TLA48Z | Needle Bearing |  |
| 05. | CH08-02-28 | Needle Roller |
| 06. | CH08-02-27 | Metal |
| 07. | TLA48Z | Needle Bearing |  |
| 08. | CH08-02-28 | Needle Roller |
| 09. | CH08-02-19 | Fitting Plate |
| Head Air Cylinder ( Набор ) |

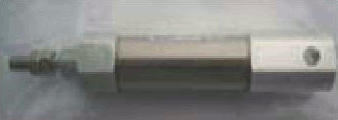

| 10. | CDJ2D16-20 | Air Cylinder |  |

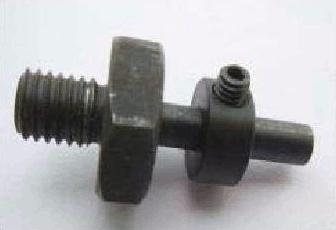

| 11. | H1TAC33015 | Bearing Rod |  |
| 12. | A1TACLB017 | Adjusting Nut |
| 13. | KS4*4 | Fixing Skew |

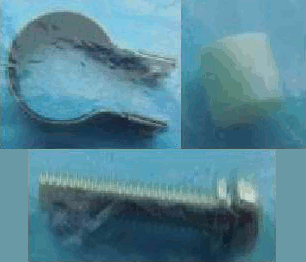

| 14. | BJ2-016 | Cylinder Lock Ring |  |

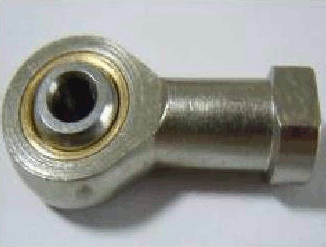

| 15. | PHS-5 | Cylinder Universal Joint |  |
| 16. | E0TAC42116E | Cable Processing Fig.AS-5 |  |
| 17. | AS1201F-M5-04 | Air Velocity Regular |
| 18. | AS1211F-M5-04 |
