Gerber, Auto-cutter, запчасти: Каталог, Таблица 4
| # | Номер по каталогу / Parts no. | Описание / Description | Изображение / Pictures |
|---|---|---|---|
| 25. | 90846000 | CLIP, PIN, RETENTION |  |
| 26. | 93297001 | BLADE GUIDE-UPPER MODIFICATION |  |
| 27. | 93293001 | TOP ROLLER SUB-ASSEMBLY |  |
| 28. | 90944000 | UPPER CARBIDE BLADE GUIDE ASSEMBLY |  |
| 29. | 91512000 | PULLEY IDLER SUB-ASSEMBLY MACHINED |  |
| 30. | 91920001 | GUIDE, ROLLER, LOWER, Z7 |  |
| 31. | 94065000 | GUIDE, ROLLER, LOWER, xlc7000 |  |
| 32. | 90814000 | PIN, REAR, LOWER ROLLER GUIDE, CARBIDE |  |
| 33. | 90815000 | PIN, SIDE, LOWER ROLLER GUIDE |  |
| 34. | 91281000 93298001 | ROLLER-SIDE, WITH TAPER |  |
| 35. | 93413000 | CARBIDE ROLLER |  |
| 36. | 90937000 | HOUSING, SHARPENER |  |
| # | Номер по каталогу / Parts no. | Описание / Description | Изображение / Pictures |
|---|---|---|---|
| 37. | 90934000 | BOWLPRESSER FOOT |  |
| 38. | 90933000 | PRESSER FOOT, PLATE |  |
| 39. | 90816000 | BUMPER, STOP, PRESSERFOOT |  |
| 40. | 59486001 | BEARING, LINEAR, W/ROD, S-93-7 |  |
| 41. | 153500606 | BEARING, 25MM SUPER SMART BALL BUSHING |  |
| 42. | 153500607 | BEARING, CAMROLL 19mm YOKE STYLE |  |

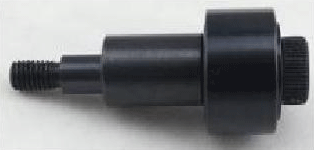

| 43. | 91863000 | ASSEMBLY, ECCENTRIC CAMROLL BEARING |  |
| 44. | 153500150 | BEARING BARDEN 101FFTMTX1K3G 6.4724 1.1024 |  |
| 45. | 153500615 | BEARING PEER #6001-2RS |  |
| 46. | 82273000 | BEARING, ѠAXIS THK RA5D08UUCO-E |  |
| 47. | 153500223 | BEARING, W/DBL SHLD & FLG, 6IDx130Dx5 Wmm, ABEC3 |  |
| 48. | 153500224 | BEARING BALL DBL SHLD & FLGD 8IDX160DX5WMM |  |
